How to write a partitioner & backend delegate

Resources

• https://pytorch.org/executorch/stable/compiler-delegate-and-partitioner.html

• https://pytorch.org/executorch/stable/backend-delegates-integration.html

• Good coding examples are in https://github.com/pytorch/executorch/tree/main/exir/backend/test

Summary

• A delegate backend implementation is composed of:
  • An ahead-of-time preprocessing interface
    • program preprocessing (e.g. ahead of time compilation, transformation, optimization…).
      • e.g. for XNNPACK, this is where you define the xnn_subgraph and compile it with xnn_create_runtime
  • A runtime initialization and execution interface
    • Program initialization (e.g. runtime compilation).
      • e.g. for XNNPACK, this is where you call reshape_runtime and setup_runtime
    • Program execution.
      • e.g. for XNNPACK, this is invoke_runtime
    • (optional) Program destroy (e.g. release backend owned resource)

• You will need to implement in executorch/backends/<delegate_name>/ the Python sources files for preprocess() and partition() for ExecuTorch AOT flow.
• You’ll also need to implement the C++ files for defining the Executor for init() and execute()

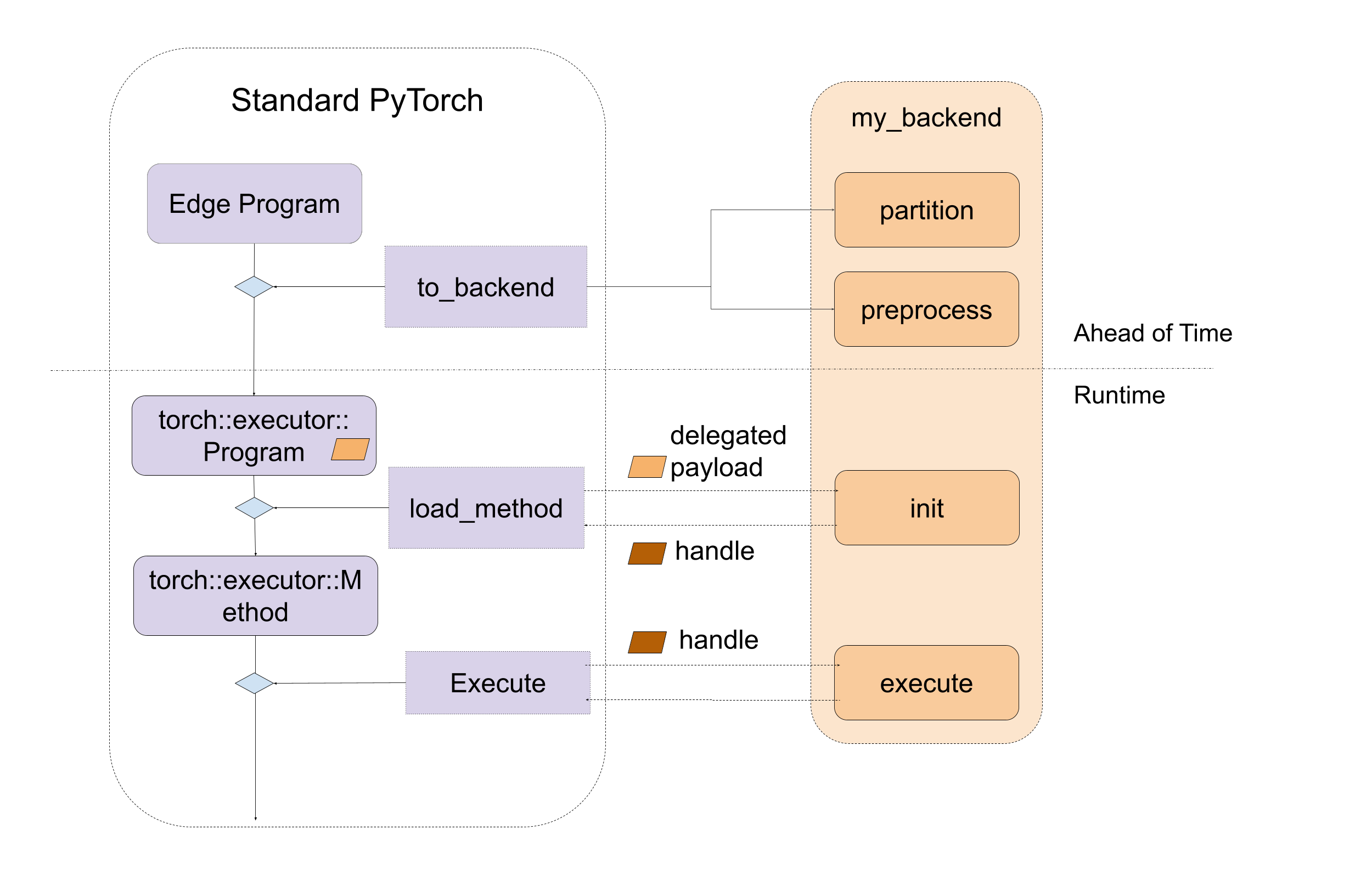

Backend interfaces:

Ahead-of-Time Preprocessing

• There are mainly two Ahead-of-Time entry point for backend to implement: partition and preprocess.

1. partitioner is an algorithm implemented by the backend to tag the nodes to be lowered to the backend.
2. Every tagged subgraph will be sent to the preprocess part provided by the backend to compiled as a binary blob.

The partitioner

• The main API looks like this


@dataclass
class PartitionResult:
tagged_exported_program: ExportedProgram
partition_tags: Dict[str, DelegationSpec]

def partition(
    exported_program: ExportedProgram,
) -> PartitionResult:


• The nodes that intend to be delegated must be tagged (by setting node.meta["delegation_tag"]) and this tag must be provided in the partition_tags dictionary mapping to an instance of DelegationSpec(backend_id, method_compilation_spec).
• Each tag must represent a distinct submodule that we intend on lowering and should be fully contained.

The preprocesser

• The Main API looks like this

@dataclass
class PreprocessResult:
processed_bytes: bytes = bytes()
debug_handle_map: Optional[Union[Dict[int, Tuple[int]], Dict[str, Tuple[int]]]]

def preprocess(edge_program: ExportedProgram,
compile_specs: List[CompileSpec]) -> PreprocessResult

Runtime Initialization and Execution

• During the runtime, the compiled blob from the preprocess function will be loaded and passed directly to the backend’s custom init function.
• The backend’s custom execute function will then be called to execute the handle produced by init
• The main API looks like this:

// Runtime initialization
ET_NODISCARD virtual Result<DelegateHandle*> init(
    BackendInitContext& context,
    FreeableBuffer* processed,
    ArrayRef<CompileSpec> compile_specs);

// Runtime execution
ET_NODISCARD virtual Error execute(
    BackendExecutionContext& context,
    DelegateHandle* handle,
    EValue** args);
